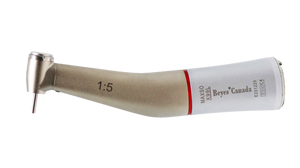

Maxso X99L 1:5 Increaser Fiber Optic Highspeed Handpiece
Beyes Maxso Series contra-angles adopts the latest technology to increase productivity and durability to provide the highest value to end users. Best possible access to the operating field and maximum visibility were the most important criteria during the design process of the instrument body.
Cellular Glass
Compact glass rod for outstanding illumination of the treatment site.
Ceramic Ball Bearing
Quiet operation to reduce anxiety.
Titanium
Durable instrument construction with exceptional service life.
Clean Head System
Eliminate cross contamination.
| Contra-angles | X99 Series |
| Transmission ratio | 1:5 |
| Motor coupling (acc. to standard) | ISO 3964 |
| Instrument (acc. to EN ISO 1797-1:1995) (ø mm) | 1.6td> |
| Length in mm approved by Beyes (mm) | 25 |
| Min. chuck length | until back stop |
| Spray flow rate (acc. to ISO 7785-2) (ml/min) | > 50 |
| Water setting range (rec. water pressure) (bar) | 0.5 – 2 (1.5) * |
| Chip air setting range (must be higher than the water pressure) (rec. chip air pressure) (bar) | 1.5 – 3 (2)** |
| Chip air consumption at 2 bar (Nl/min) | > 1.5 |
