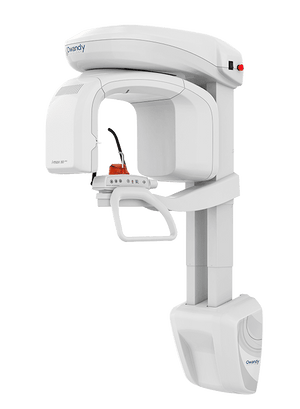

I-Max 3D Pro Multifunctional dental Cone beam

I-Max 3D Pro Multifunctional dental Cone beam for enhanced diagnostics
The I-Max 3D Pro is not only the lightest Cone Beam system, but also the dental Cone Beam with the best price-to-performance ratio.
TAKES UP ZERO FLOOR SPACE
SLEEK & STYLISH
SURGICAL GUIDES
A CONTROLLED BUDGET
3D CONE BEAM MULTI F.O.V
EXCEPTIONAL IMAGE QUALITY
The 3D I-Max can be adjusted to suit all surgeries
Available with 3 mounting options 1. Wall-mounted version 2. Column-mounted version
3. Standalone version
With its multiple programs, the I-Max 3D Pro allows you to perform all the necessary examinations for your practice (Pediatric / Adult).

I-Max 3D Pro is a 4-in-1 Dental Cone Beam designed to enable more accurate diagnosis, treatment planning, and better outcomes for patients. Our dental panoramic seamlessly integrates into the digital workflow.

I-Max 3D Pro panoramic adapts to you and your current needs. It allows you to switch from traditional 2D to a 2D/3D Cone Beam version whenever you want.

I-Max 3D Pro Specification

Category : llb/CE0051
Power supply : 110-120 V, 220-240 V à 50/60Hz
Anode voltage : from 60 to 86 kV
Anode current : from 2 to 12,5 mA
Total weight : 67 kg
Inherent filtration : ≥ 2,5 mm Al. eq@ 86kVp
HF generator : Constant potential (DC)
X-Ray focal spot : 0,5 mm EN 60336
Connection : LAN, Ethernet
Voxel : 72μm (min. cross-section depth)
2D panoramic : Yes
3D Cone Beam : Yes
Cephalometry : No
FOV : 12×10* / 9×9 / 9×5 / 5×5 cm
Programmes : 18 3D programmes, 24 2D programmes
Mounting : Wall
Guarantee : 2 years (optional 5 year** guarantee)
Installation options : Floor base plate, Wall column
